ZOPKHITO NARROW VEINED ANTIMONY-GOLD DEPOSIT
***
McADAM'S LAW ON GEOLOGY:
All experts are fools.
SIR FISHER'S ADDENDUM TO McADAM'S LAW:
Some of them are useful.
***
All previous studies and models are either useless or do not exist, like Wardell Armstrong International's
so called JORK estimation of 2014 and the so called Foreign GKZ Resource Estimate of 2008. Even the term "Foreign" does not exist in any
mining code and is just a translation from the Russian for foreign. Therefore, it can simply refer to any piece of crap from anywhere outside the country border.
***
Head Office of Foreign GKZ Geology/Mining Consulting Company
***
The Advanced Learners Dictionary of Current English, by A.S. HORNBY, E. V. GATENBY, H. WAKEFIELD
Unless mentioned otherwise, all models mentioned below, drawings, diagrams, calculations, tables, and their reproductions, are made by me, Sergo Cusiani, Mining Consultant, in 2019.
***
1959 Map of Zopkhito Mines (Soviet military map)
***
ONE NOTE TO SOVIET-RUSSIAN NOTORIOUS GKZ MINING CODE BELIEVERS: HEAD ON TO LOOK AFTER DONKEYS IN KAZRETI!
***
DATAMINE Studio Help System note about Mineable Shape Optimizer:
***

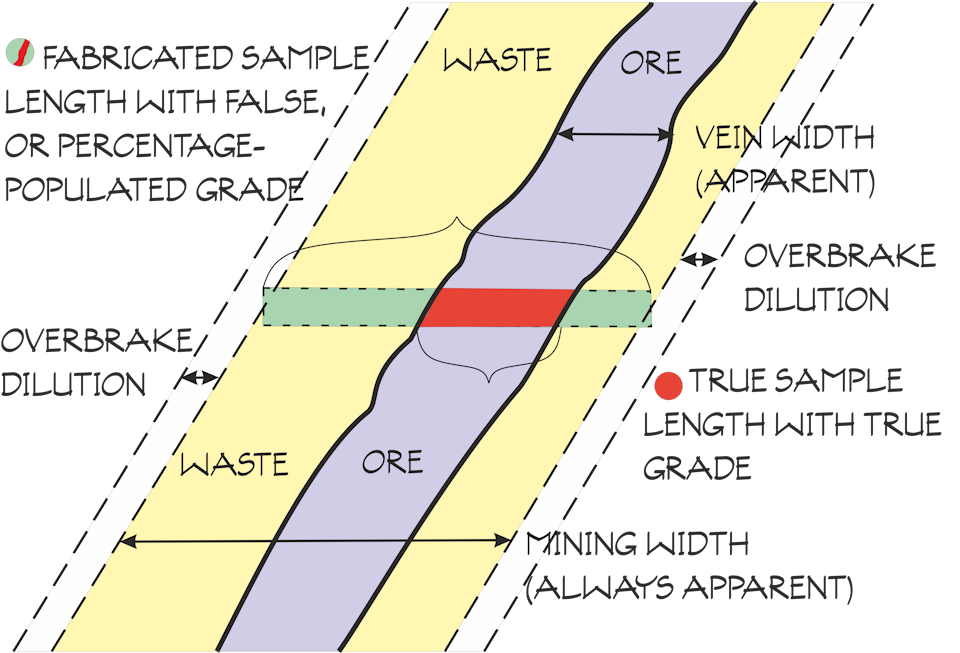

Mineable Shape Optimizer (MSO) is not applicable for regularized block-models that use a percentage-populated field for contained metal grade.
***
***
Antimony Mineral From Zopkhito Mine.
***
Zopkhito Anitmony-Gold Mine, Sampling Reconciliation Program: click on the picture to view the report.
***
Cells Fitted Between Vein Roof And Floor Wireframes. 2019 Block Model, Zopkhito Mines
***

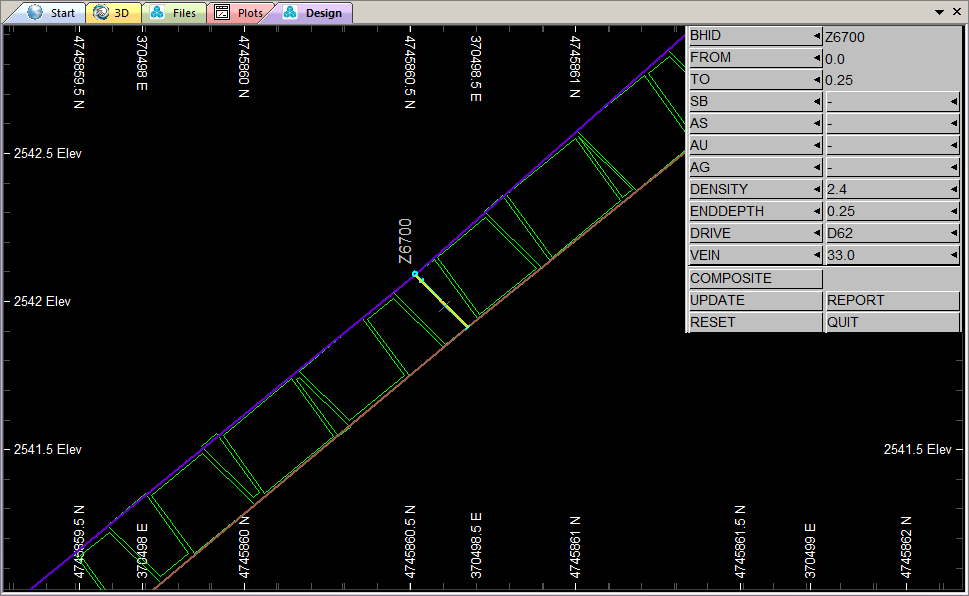

Vein 33, Horizontal Section at 2527.28m elevation, Block Cells and Vein Foot- and Hanging Walls. Vein Thinckness: 0.6m. 2019 Block Model, Zopkhito Mines
***

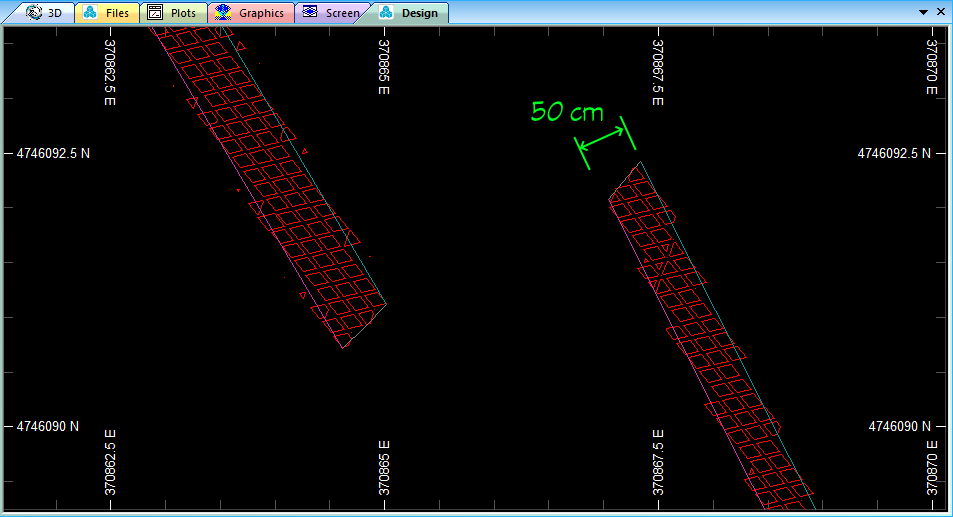

Vein #2, Horizontal Section Through Tectonic Fault. Block Model Cells Fitted Between 20-cm-wide Vein Wireframe. 2019 Block Model, Zopkhito Mines
***
Vein #2, Horizontal Section Through Tectonic Fault. Smaller Parent Cells Provide Better
Grade Distribution and Effective Accommodation of the Vein Volume. 2019 Block Model, Zopkhito Mines
***
Adit #38 3D Point Cloud Survey Wireframe and Cells, Vein #28, 2019 Block Model.
***
Another Example of Cell Fittness to Narrow Vein Wireframe, Vein #28, Horizontal Section, Apparent Width: 30cm, True Width: 17cm. 2019 Block Model.
***
Vein #28, Same Spot, Vertical Section, True Width: 17cm. 2019 Block Model.
***
Narrow ore processing cannot be done on an ore only block model (Alford Mining Systems).
***
Vein #2, Vertical Section, Subsell Block Model with Waste Cells Adjacent to Foot and Nanging Walls as a Source of Waste Penalty. 2019 Block Model.
***
A Fraudulent Block Model Built by a Notorious World Leading Consultant: 2015, Fake JORC Block Model Fabricated by Waldell Armstrong International Limited .
***
Vein #33 Wireframe View, 2019 Zopkhito Mines
***
2019 Zopkhito Terrain Model
***

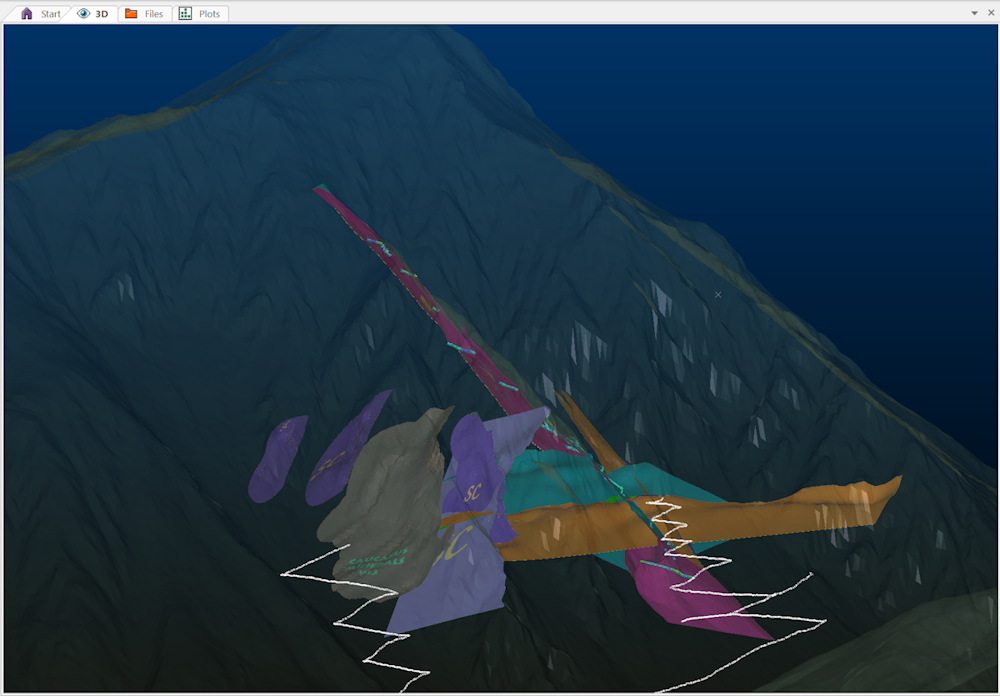

2019 Zopkhito Vein Wirefraime Model and Hairpins of Access Roads
***
Another View of Zopkhito veins, 2019
***

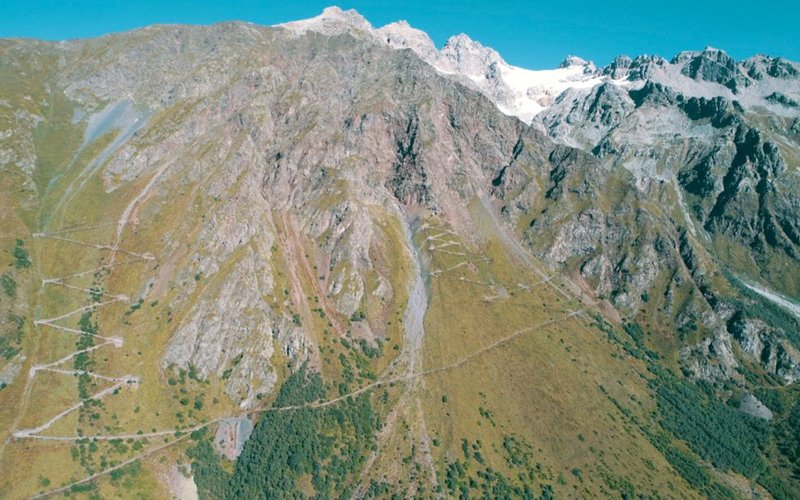

Zopkhito Hairpins
***
Point Cloud Survey Wireframe of Adit, Zopkhito Mines
***
2019 Zopkhito Mines: Trench Sample, Point Cloud Survey Wireframe, Vein Wireframe, and Rotated Block Model in Concert.

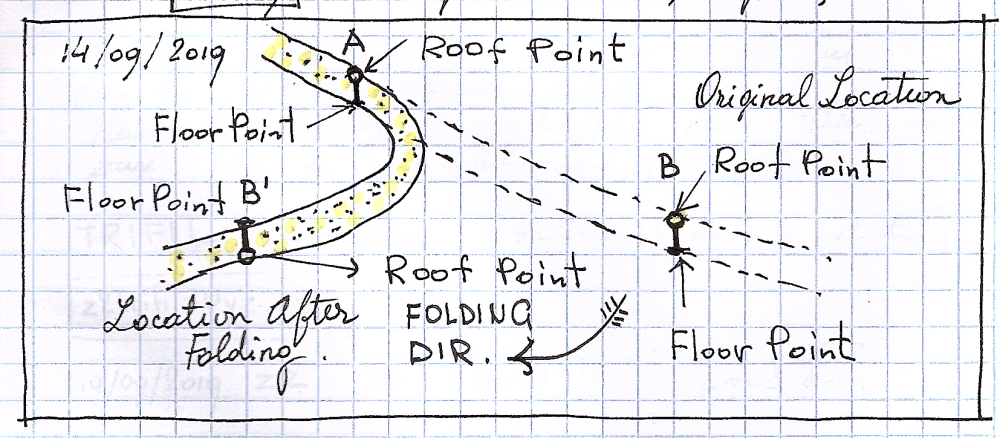

2019 Zopkhito Mines: Trench Sample Interpretation on the Folded Vein #2.
***

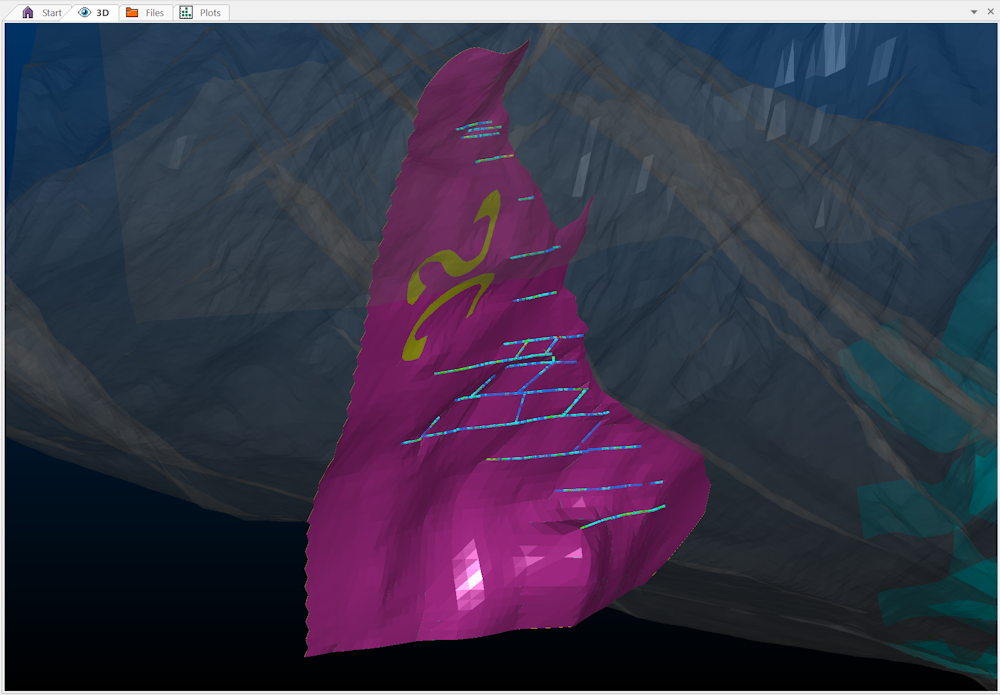

2019 Zopkhito Mines: Folded Vein #2 with Trench samples.
***
Fine Tuning Of Vein Wireframe Using 3ds MAX SoftSelection Tool. Zopkhito Mines
***
Blender Falloff Tool: Concave. Zopkhito Mines
***
Blender Falloff Tool: Convex. Zopkhito Mines
***
Bird's Eye View Of Zopkhito Mine
Zopkhito Mine Site Camp
***
2019, Zopkhito Valley South View From Adit Portal. Cottage Camp Down the Vally on the Right Side of Zopkhito River, Blue Willis Jeep with White Top Parked by the Hairpin Access Road Near the Portal.
***
Zopkhito Ice in July 2019
***
Yellow Wild Lilly (lat: Lilium monadelphum; ge: ქართული შროშანი) Zopkhito 2019
***
Caucasus Ridge View from Camp. Zopkhito 2019
***
2019, Zopkhito Channel Sample from Adit Wall, Cut Across the Vein Using Circular Saw with the Sample Unit Material Between the Cuts Chipped Off by Hammer and Chisel
***
Zopkhito Mines, Adit #50 3D View. Digitized Sample Coordinates Are Out Of The Point Cloud Survey Wireframe.
***
Zopkhito Mines, Adit #50 Vertical Section. Digitized Sample Coordinates Are Out Of The Point Cloud Survey Wireframe.
***

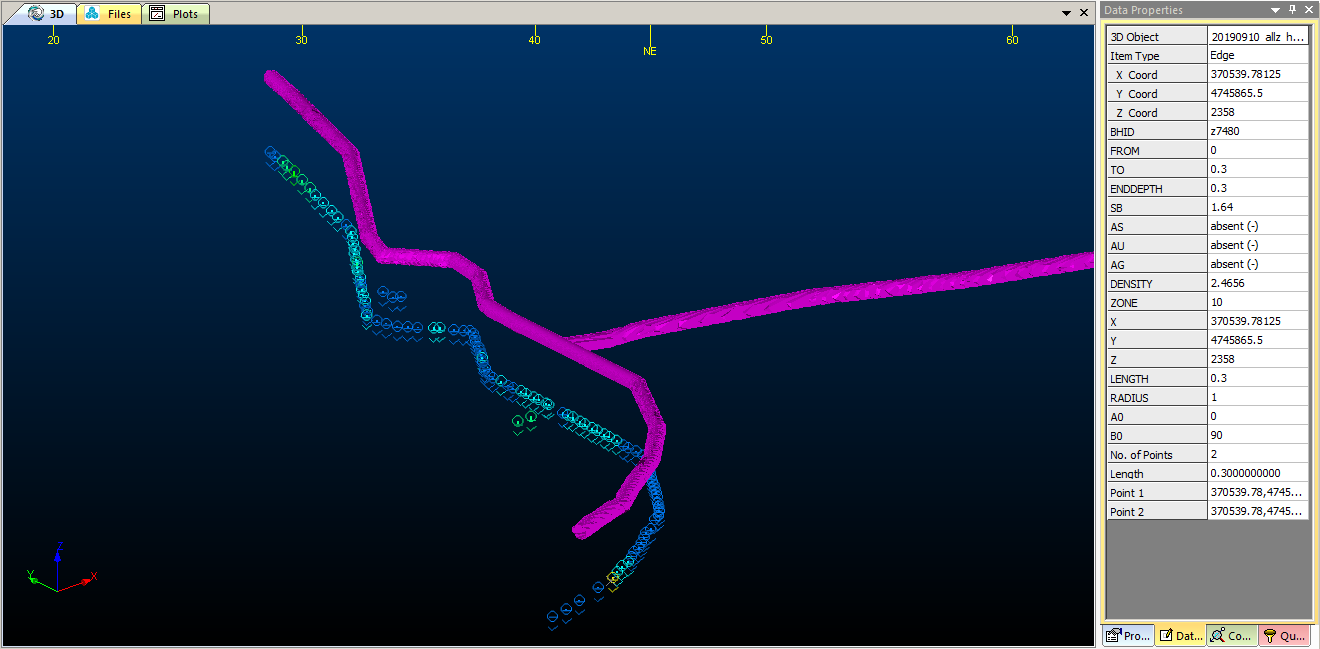

Zopkhito Mines, Adit #50 Visualizer View.
***
Zopkhito Mines, Adit #59. Point Cloud Survey Wireframe with Vein Wireframes and Block Model Cells Compared with Blueprints of the Same Area.
***
Zopkhito Mines, An Example of Mismatch Between Old Map Outlines and Real Time Survey
***
Zopkhito Mines, Point Cloud Survey Wireframe Of Adit #1 Interaction With Vein # 8 Wireframe.
***
Zopkhito Mines, Samples Of Vein #28 and Adit #24 Point Cloud Wireframee.
***

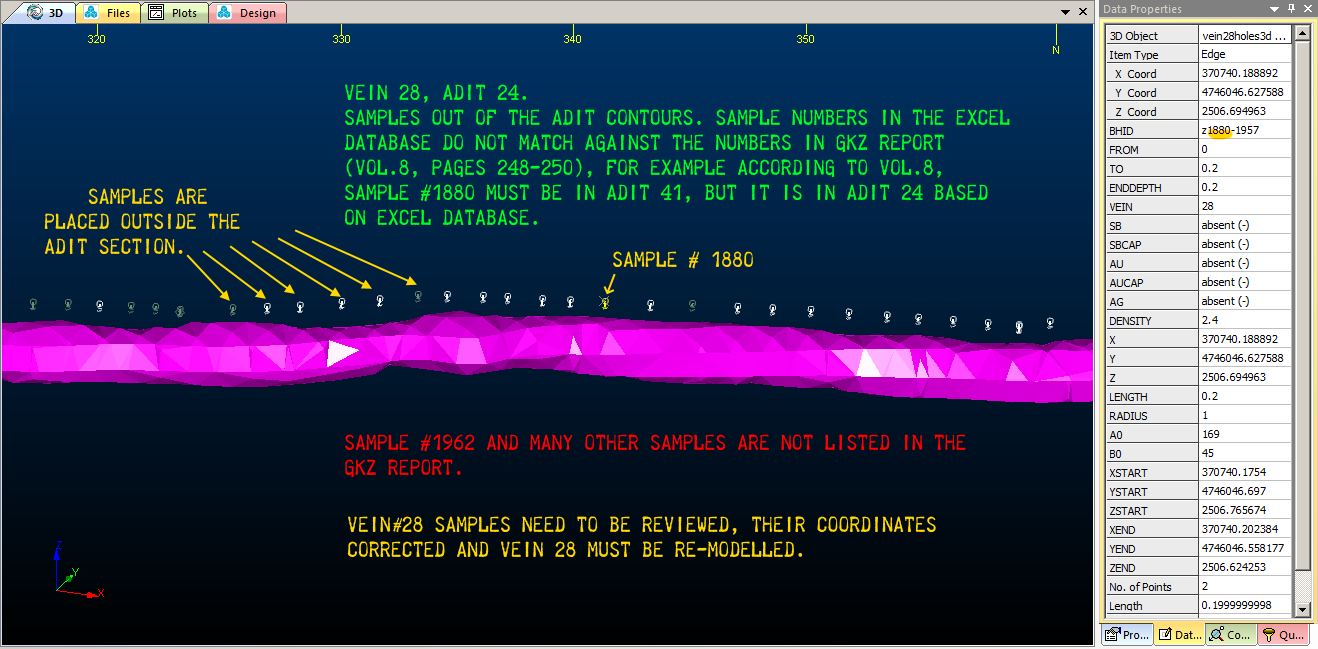

Zopkhito Mines, Adit #24 Sample Errors.
***

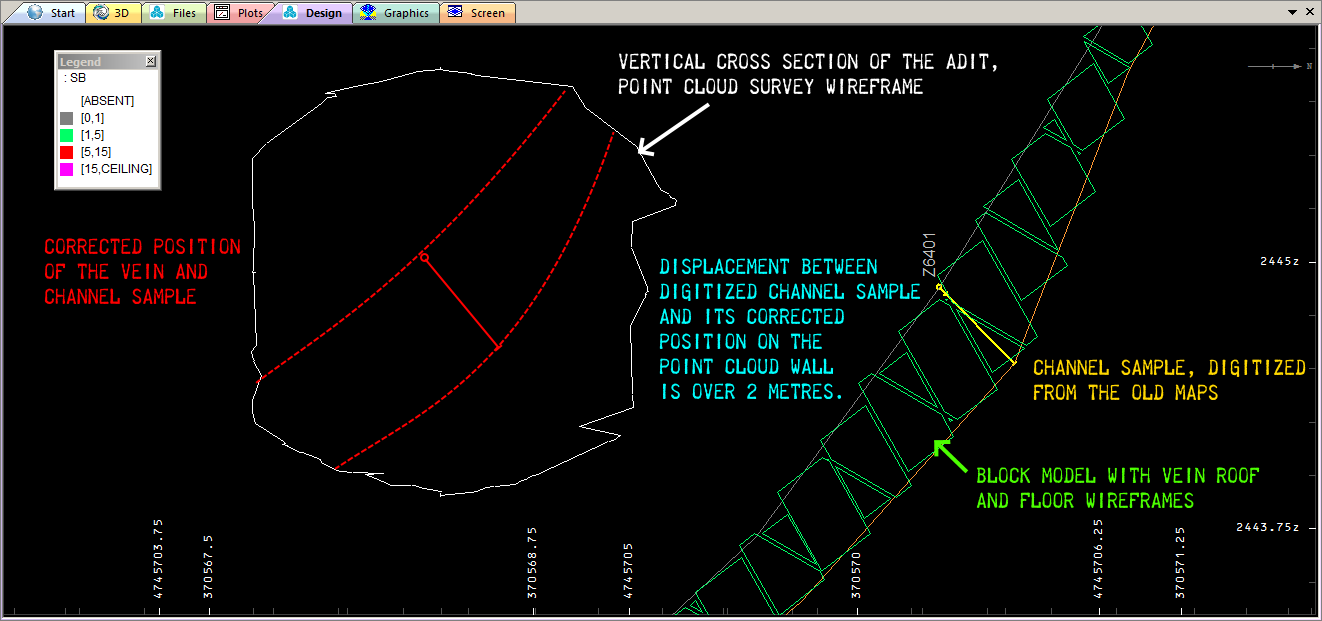

Zopkhito Mines, Adit #90.
***
Trench samples (only) are not eligible to coding (JORC TABLE 1, Section 1: Sampling Techniques and Data, Page 26, The JORC Code)
***
All sample coordinates were digitized from 1957-1970s GKZ style maps and drawings. No field survey data of 1957-1970 was available. 3D Point Cloud Survey (control survey of 2018) proved the GKZ supplies to have been out in all directions by 2 to 20 metres from actual locations where they had been taken from. Therefore, in 2019 sample collar XYZ locations were corrected to correspond with the 3D survey. Though less than 5% of total adit extent have been surveyed with Point Cloud Survey. 95% of available survey data do not meet coding guidelines (JORC TABLE 1 Section 1: Sampling Techniques and Data, Page 27, The JORC Code).
***
Vein #28, Antimony Probability Plot.
***
Vein #6, Sample Length Histogram.
***
Vein #6, Antimony Downhole Variogram.
***
Vein #6, Antimony Horizontal Variogram.
***
Vein #6, Antinomy Vertical Variogram.
***
Vein #6, Antimony Crossvariogram.
***
Vein #6, Antimony Summary Variogram.
***

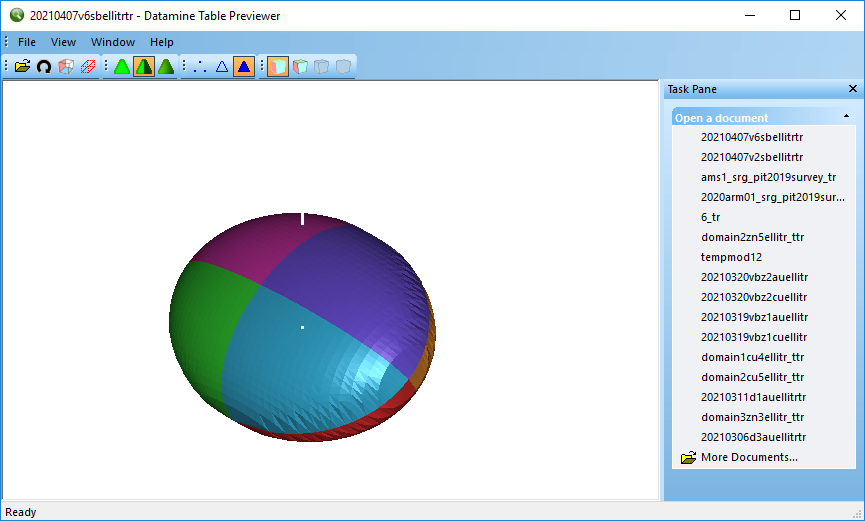

Ellipsoid.
***

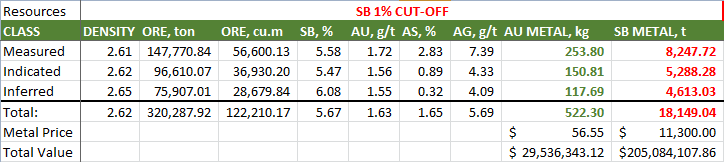

Zopkhito Mines, Antimony and Gold Resources
***
Mineable Shape Optimizer (MSO)
run at min 1 and max 1.4m mining width and SB 1% cut-off grade proves almost no recoverable reserves.
Mineable Shape Optimizer (MSO)
run at min 1 and max 1.4m mining width and SB 0.3% cut-off grade adds value next to nothing.
